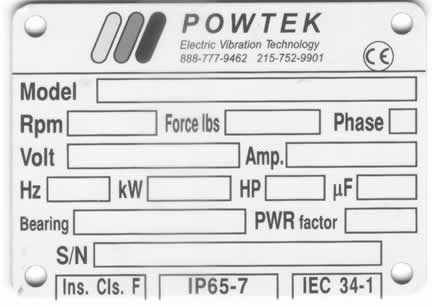

NAME PLATE
 |
Name Plate contains important data |
|
Model:
|
Model Number |
|
Rpm:
|
Vibration per minute |
|
Force Lbs:
|
Centrifugal Force in Lbs |
|
Phase:
|
3 for Three-Phase or 1 for Single Phase |
|
Volt:
|
Voltage (usually 115v or 230/460v) |
|
Amp:
|
AMP draw at the above voltage |
|
Hz:
|
Power Supply Frequency (Usually 60Hz) |
|
KW:
|
Absorbed Power in Kilowatts |
|
HP:
|
Absorbed Power in Horse Power |
|
nF:
|
Size of the Capacitor in Microfarad (Single Phase Only) |
|
Bearing:
|
Bearing Model |
|
PWR factor:
|
PWR factor Also called “Cos Fee” is the Motor Efficiency Factor |
|
S/N:
|
Serial Number |
|
Ins. Cls. F:
|
Insulation Class "F" |
|
IP:
|
Electrical Protection Rating IP 65 |
|
|
6= Totally protected against dust and other possible solid agents |
|
|
5= Protected against low pressure jets of water from all directions |
|
IEC:
|
International Electric Code Regulation |
